RD-Y(ST)Y 48x2x0,5 GY
Supplier-ID: 0032477
Description
RD-Y(ST)Y is used as a data transmission cable for applications such as monitoring systems and control units, Measurement, control and regulation technology and also in control rooms of power plants and industrial facilities, Suitable for transmission of analogue and digital signals up to a frequency of about 10 kHz, Designed for fixed installations in enclosed rooms., In order to reduce costs, the multi-wire copper braided conductor has been provided for Maxi TERMI-POINT® connecting technology. This (semi-automatic) wiring method considerably reduces the time and the costs required for installation., Decoupling of circuits by means of twisted-pair (TP) design (crosstalk effects), Cores twisted into pairs, 4 pairs twisted into a bundle, bundles in layers, bundles labelled using numbered foil, 7-wire strand made of bare copper wires Core insulation made of PVC, Outer sheath colour: grey, Aluminium-laminated plastic film static shield with tin-plated drain wire, Outer sheath made of PVC, Based on DIN VDE 0815, Variant with 2 double cores twisted as star quad, Outer sheath colour: grey or blue for intrinsically safe systems, Flame-retardant according to IEC 60332-1-2,
| Specification | Value |
|---|---|
| Core insulation | PVC |
| Core identification | Colour |
| Flame retardant | In accordance with EN 60332-1-2 |
| Colour outer sheath | Grey |
| Material outer sheath | PVC |
| Conductor category | Class 2 = stranded |
| Operating temperature, flexible | -5 - 50 |
| Operating temperature, fix | -40 - 80 |
| Number of cores | 96 |
| Halogen free (acc. EN 50267-2-2) | No |
| Outer diameter approx. | 25.5 |
| Low smoke (acc. EN 61034-2) | No |
| Stranding element | Pairs |
| Screen over stranding element | None |
| Screen over stranding | Foil |
| Diameter conductor | - |

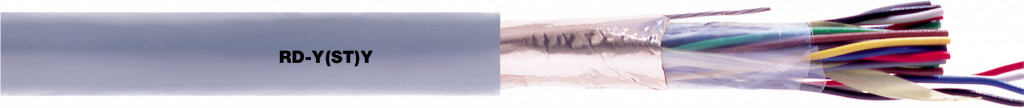

Product images
