Letronic e.K. is official distributor of Lapp Cable.

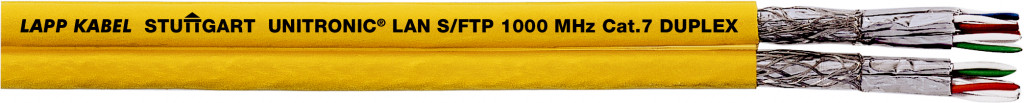

UNILAN1000S/FTPCat.7dup 2x(4x2xAWG23/1)
Supplier-ID: 2170634
Description
Mainly used where the end device density is very high, e.g. for wiring office, administration and development buildings in the tertiary sector (floor wiring)., Cable length in the tertiary sector (horizontal area, floor) should not exceed a length of 100 m in accordance with the ISO/IEC 11801 and EN 50173 standards (90 m in cable duct + 10 m in working area), LAN cables for structured building cabling according to EN 50173 and ISO/IEC 11801, S/FTP: Copper braid as overall shielding and pair screening with aluminium compound foil, Outer sheath: halogen-free, flame-retardant compound, Solid conductor, Colour: yellow (RAL 1021), Class F in the ISO/IEC 11801 standard corresponds to CAT.7, Transfer of digital and analogue data signals, Flame-retardant according to IEC 60332-1-2 and bundle flame test according to IEC 60332-3-24, IEEE 802.3: 10/100/1000Base-T, 10GBase-T IEEE 802.5: ISDN; FDDI; ATM; cable sharing IEEE 802.3at: Suitable for PoE,
| Specification | Value |
|---|---|
| Core insulation | Foam-Skin-PE |
| Core identification | Colour |
| Flame retardant | In accordance with EN 60332-3-24 |
| Colour outer sheath | Yellow |
| Material outer sheath | Other |
| Conductor category | Class 1 = solid |
| Operating temperature, flexible | -20 - 60 |
| Operating temperature, fix | 0 - 50 |
| Number of cores | 16 |
| Halogen free (acc. EN 50267-2-2) | Yes |
| Outer diameter approx. | 15,4 |
| Stranding element | Pairs |
| Screen over stranding element | Braiding |
| Screen over stranding | Foil |
| Diameter conductor | 0,25 |
| Conductor material | Cu, bare |
| AWG-size | 23 |
| Category | 7A (IEC) |
| NVP value | 79 |
Product images
Datasheet
Here you can download the product's datasheet.
Download datasheetPreise
| Amount | Netto | Brutto |
|---|---|---|
| 100m | 303,76€ | 361,47€ |
| 500m | 1.518,78€ | 1.807,35€ |
| 1000m | 3.037,56€ | 3.614,70€ |
Price calculation
Below you can calculate the total price (including copper surcharge) for your desired cable length. Please note, that the copper surcharge will depend on the current stock exchange rate (today: 891,00€/100kg).
For further information regarding the shipment or mass-discounts you can contact us. Please note, that will charge an additional 15,00€ for cutting if you order less than 100 meters or other non-standard sizes.
For orders of less than 150,00€ product value we will charge a fee of 25,00€. Purchase on account - a credit check may be required. All Lapp products will be shipped free of charge within Germany for orders of 350,00€ or more
