Letronic e.K. is official distributor of Lapp Cable.

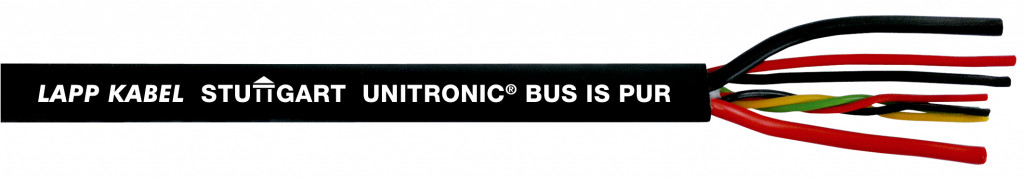

UNITRONIC® BUS IS PUR 2x6+2x2,5+1x4x0,5
Supplier-ID: 2170561
Description
Connection cable between tractor and pulled machinery, For outdoor applications, Cable according to ISOBUS standard (ISO 11783-2) for use in agricultural vehicles, HYBRID: Cable for data transmission and power supply, 4x 0.5 mm² (red, yellow, black, green) 2x 2.5 mm² (red, black) 2x 6 mm² (red, black), Sheath: Black PVC or PUR special compound, Fine-wired copper conductor made of bare copper wires in line with braided conductor class 5 according to IEC 60228 / VDE 0295, ?ISO 11783-2:2012, Flame-retardant according to IEC standard 60332-1, Resistant to oil, petrol and diesel, UV-resistant, PUR (polyurethane) version with increased robustness, UV resistance and halogen-free,
| Specification | Value |
|---|---|
| Core insulation | PVC |
| Core identification | Colour |
| Flame retardant | In accordance with EN 60332-1-2 |
| Colour outer sheath | Black |
| Material outer sheath | PUR (Polyurethane) |
| Conductor category | Class 5 = flexible |
| Operating temperature, flexible | -5 - 50 |
| Operating temperature, fix | -40 - 85 |
| Number of cores | 8 |
| Halogen free (acc. EN 50267-2-2) | No |
| Outer diameter approx. | 15,6 |
| Low smoke (acc. EN 61034-2) | No |
| Stranding element | No |
| Screen over stranding element | None |
| Screen over stranding | None |
| Diameter conductor | - |
| Conductor material | Cu, bare |
| AWG-size | - |
| Category | Other |
| NVP value | - |
Product images
Datasheet
Here you can download the product's datasheet.
Download datasheetPrice request
If you are interested in this product, don't hesitate to call us at
