UNITRONIC® SENSOR LifYY 4x0,34 BK
Supplier-ID: 7038860
Description
Ungeschirmte und geschirmte Datenleitungen zum Anschluss an M8, M12 Steckverbinder, Meterware für UNITRONIC® Feldbus Sensor-/Aktor-Verkabelung, Automatisierungstechnik, Maschinenbau, Anlagenbau, UNITRONIC® SENSOR LifYY Leiter: Cu-Litze, blank, feinstdrähtig nach DIN VDE 0295, Klasse 6, Aderisolation PVC, Außenmantel PVC, UNITRONIC® SENSOR DESINA® LifY11Y Leiter: Cu-Litze, blank, feinstdrähtig nach DIN VDE 0295 Klasse 6, Isolation Spezial-PVC, Adern in Lagen verseilt, Aderidentcode gem. DESINA® (br, ws, bl, schw), Außenmantel aus Spezialmischung auf Polyurethanbasis, Rapsg, UNITRONIC® SENSOR FD Li9Y11Y und SENSOR FD Li9YC11Y AWM UL Style 20549, 80°C / 300 V. Leiter: Cu-Litze, blank, feinstdrähtig nach DIN VDE 0295 Klasse 6, Aderisolation: modifiziertes Polypropylen (PP), Außenmantel: halogenfreies Polyurethan (PUR), matt, ad, Leitungen der UNITRONIC® SENSOR FD-Serie eignen sich besonders für den Schleppketteneinsatz, Ader-Farbcode gemäß DIN EN 50044, 3x 0,25 mm² bzw. 0,34 mm2 1= braun, 2= blau, 3= schwarz, 4x 0,25mm² bzw. 0,34 mm2 1= braun, 2= weiß, 3= blau, 4= schwarz, 5x 0,25mm2 bzw. 0,34mm2 1= braun, 2= weiß, 3= blau, 4= schwarz, 5=grau, 8x 0,25mm2 1= weiß, 2=braun, 3= grün, 4= gelb, 5= grau, 6= rosa, 7=blau, 8= rot,
| Specification | Value |
|---|---|
| Model | Round |
| Nominal cross section conductor | 0,34 |
| Core insulation | PVC |
| Core identification | Colour |
| Flame retardant | No |
| Oil resistant (acc. EN 60811-2-1) | No |
| Nominal voltage U | 900 |
| Colour outer sheath | Black |
| Material outer sheath | PVC |
| Conductor category | Class 2 = stranded |
| Protective conductor | No |
| Operating temperature, flexible | -5 - 70 |
| Operating temperature, fix | -40 - 80 |
| Nominal voltage U0 | 900 |
| Screen | No |
| Number of cores | 4 |
| Halogen free (acc. EN 50267-2-2) | No |
| Cable width approx. | - |
| Cable height approx. | - |
| Max. conductor temperature | - |
| Outer diameter approx. | 4,8 |
| Low smoke (acc. EN 61034-2) | No |

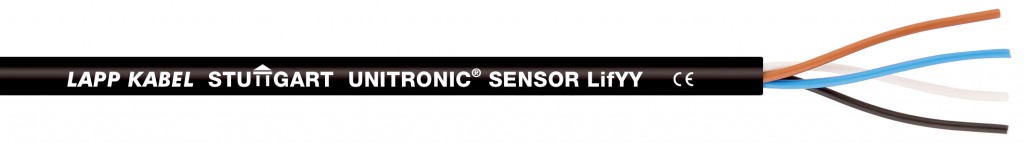

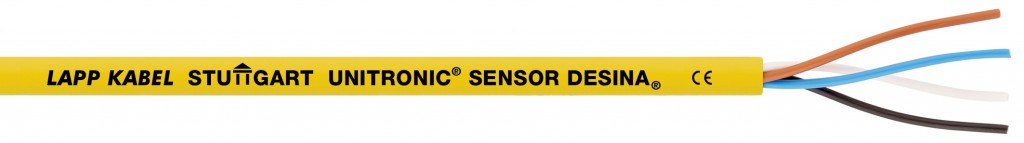

Product images
Datasheet
Here you can download the product's datasheet.
Download datasheetPreise
| Amount | Netto | Brutto |
|---|---|---|
| 100m | 83,67€ | 99,56€ |
| 500m | 391,36€ | 465,72€ |
| 1000m | 782,72€ | 931,44€ |
Price calculation
Below you can calculate the total price (including copper surcharge) for your desired cable length. Please note, that the copper surcharge will depend on the current stock exchange rate (today: 891,00€/100kg).
For further information regarding the shipment or mass-discounts you can contact us. Please note, that will charge an additional 15,00€ for cutting if you order less than 100 meters or other non-standard sizes.
For orders of less than 150,00€ product value we will charge a fee of 25,00€. Purchase on account - a credit check may be required. All Lapp products will be shipped free of charge within Germany for orders of 350,00€ or more
