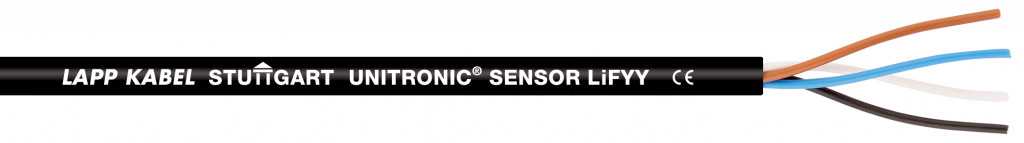

UNITRONIC® SENSOR LifY11Y 5x0,25 BK
Supplier-ID: 7038862
Description
Automation technology, Sensor/actuator cabling, Space-saving due to compact dimensions, Easy stripping and processing, Easy installation (through cable trays, tubes, cabinets), Extra-fine wire strand made of bare copper wires, Core insulation: PVC, Core colours: 3-pin: bn, bu, bk 4-pin: bn, wh, bu, bk 5-pin: bn, wh, bu, bk, gy, DESINA® 4x0.34: bn, wh, bu, bk, Outer sheath: PVC or PUR, Sheath colour: black (RAL 9005), DESINA® yellow (RAL 1021), UL recognized (LifYY A), For higher mechanical stress (LifY11Y/Desina®), Black version: UV-resistant, Core colour code in accordance with DIN EN 50044,
| Specification | Value |
|---|---|
| Model | Round |
| Nominal cross section conductor | 0,25 |
| Core insulation | PVC |
| Core identification | Colour |
| Flame retardant | No |
| Oil resistant (acc. EN 60811-2-1) | No |
| Nominal voltage U | 900 |
| Colour outer sheath | Black |
| Material outer sheath | PUR (Polyurethane) |
| Conductor category | Class 2 = stranded |
| Protective conductor | No |
| Operating temperature, flexible | -5 - 70 |
| Operating temperature, fix | -40 - 80 |
| Nominal voltage U0 | 900 |
| Screen | No |
| Number of cores | 5 |
| Halogen free (acc. EN 50267-2-2) | No |
| Cable width approx. | - |
| Cable height approx. | - |
| Max. conductor temperature | - |
| Outer diameter approx. | 4,9 |
| Low smoke (acc. EN 61034-2) | No |
Product images
Datasheet
Here you can download the product's datasheet.
Download datasheetPreise
| Amount | Netto | Brutto |
|---|---|---|
| 100m | 145,69€ | 173,37€ |
| 500m | 678,46€ | 807,36€ |
| 1000m | 1.356,91€ | 1.614,73€ |
Price calculation
Below you can calculate the total price (including copper surcharge) for your desired cable length. Please note, that the copper surcharge will depend on the current stock exchange rate (today: 891,00€/100kg).
For further information regarding the shipment or mass-discounts you can contact us. Please note, that will charge an additional 15,00€ for cutting if you order less than 100 meters or other non-standard sizes.
For orders of less than 150,00€ product value we will charge a fee of 25,00€. Purchase on account - a credit check may be required. All Lapp products will be shipped free of charge within Germany for orders of 350,00€ or more
