Letronic e.K. is official distributor of Lapp Cable.
UNITRONIC® SENSOR Li9Y11Y 3X1,0+8x0,5UL
Supplier-ID: 7038881
Description
Tool manufacture, Automotive industry, Automation technology, Mechanical engineering, Plant construction, Cost-effective and rational wiring for S/A boxes with detachable master cable connection, Can be used universally for S/A installations, Single wire diameter: 0.34 mm2 = (43 x 0.10 mm) 0.5 mm2 = (19 x 0.18 mm) 0.75 mm2 = (21 x 0.205 mm) 1.0 mm² = (55 x 0.15 mm), Fine-wire, bare copper strand, Core insulation: PP, Outer sheath: PUR, black, UL-AWM-Style 21198 (80 °C / 300 V), Cores for power supply: 3x0.75 mm2 and 3x1.0 mm2, Cores for signal cable: 4x0.34 mm2, 8x0.5 mm2, 16x0.5 mm2, Halogen-free according to VDE 0472-815, Flame-retardant according to UL 1581 FT-2, Suitable for drag chains,
| Specification | Value |
|---|---|
| Model | Round |
| Nominal cross section conductor | 0,5 |
| Core insulation | Polypropylene |
| Core identification | Colour |
| Flame retardant | In accordance with EN 60332-1-2 |
| Oil resistant (acc. EN 60811-2-1) | No |
| Nominal voltage U | 300 |
| Colour outer sheath | Black |
| Material outer sheath | PUR (Polyurethane) |
| Conductor category | Class 5 = flexible |
| Protective conductor | No |
| Operating temperature, flexible | -5 - 80 |
| Operating temperature, fix | -40 - 80 |
| Nominal voltage U0 | 300 |
| Screen | No |
| Number of cores | 11 |
| Halogen free (acc. EN 50267-2-2) | Yes |
| Cable width approx. | - |
| Cable height approx. | - |
| Max. conductor temperature | - |
| Outer diameter approx. | 8,4 |
| Low smoke (acc. EN 61034-2) | No |

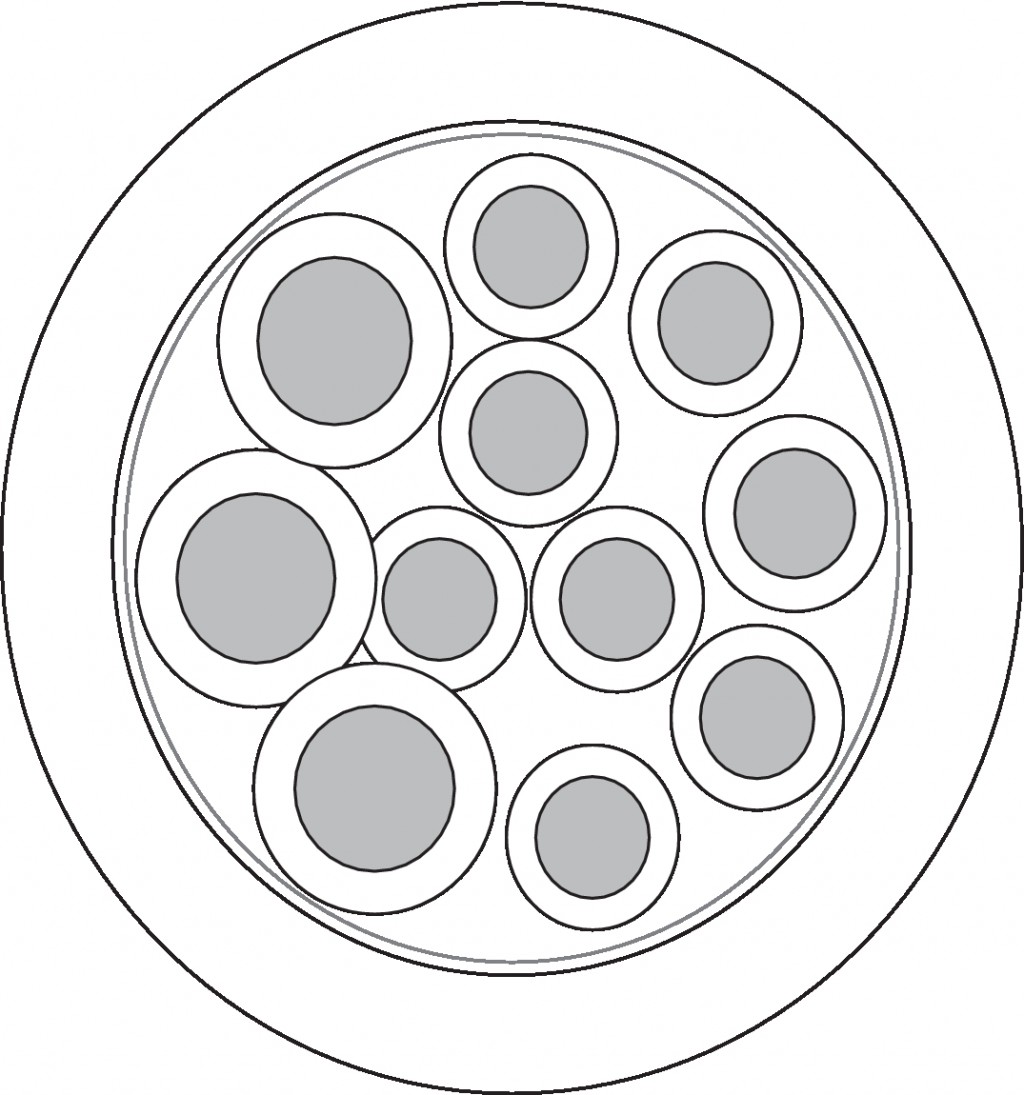

Product images
Datasheet
Here you can download the product's datasheet.
Download datasheetPreise
| Amount | Netto | Brutto |
|---|---|---|
| 100m | 441,21€ | 525,05€ |
| 500m | 2.063,31€ | 2.455,34€ |
| 1000m | 4.126,62€ | 4.910,67€ |
Price calculation
Below you can calculate the total price (including copper surcharge) for your desired cable length. Please note, that the copper surcharge will depend on the current stock exchange rate (today: 891,00€/100kg).
For further information regarding the shipment or mass-discounts you can contact us. Please note, that will charge an additional 15,00€ for cutting if you order less than 100 meters or other non-standard sizes.
For orders of less than 150,00€ product value we will charge a fee of 25,00€. Purchase on account - a credit check may be required. All Lapp products will be shipped free of charge within Germany for orders of 350,00€ or more
