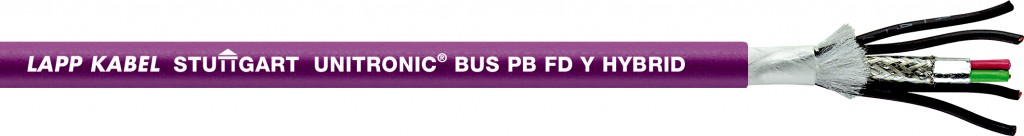

UNITR. BUS PB FD Y HYBRID 1X2X0,64+4X1,5
Supplier-ID: 2170875
Description
PROFIBUS DP (in accordance with DIN 19245 and EN 50170, e.g. for SIEMENS SIMATIC® NET, also for FIP - Factory Instrumentation Protocol)., Cables can be used for PROFIBUS-DP as well as PROFIBUS-FMS and FIP, CL3 for installation on trays, For highly flexible applications (drag chains, frequently moving machine components), Cores for power supply 4 x 1.5 mm2 (AWG16), Outer sheath: Special PVC compound, With UL/CSA certifications (CMG, CL3, SUN RES, Oil Res I), Flame-retardant according to CSA FT4 UL Vertical-Tray Flame Test, Oil-resistant according to UL OIL RES I, HYBRID: Cable for data transmission and power supply,
| Specification | Value |
|---|---|
| Core insulation | PE |
| Core identification | Colour |
| Flame retardant | In accordance with EN 60332-3-24 |
| Colour outer sheath | Other |
| Material outer sheath | PUR (Polyurethane) |
| Conductor category | Class 5 = flexible |
| Operating temperature, flexible | -5 - 80 |
| Operating temperature, fix | -5 - 80 |
| Number of cores | 6 |
| Halogen free (acc. EN 50267-2-2) | No |
| Outer diameter approx. | 11,3 |
| Low smoke (acc. EN 61034-2) | No |
| Stranding element | Pairs |
| Screen over stranding element | None |
| Screen over stranding | None |
| Diameter conductor | 0,67 |
| Conductor material | Cu, bare |
| AWG-size | - |
| Category | Other |
| NVP value | - |
Product images
Datasheet
Here you can download the product's datasheet.
Download datasheetPrice request
