Letronic e.K. is official distributor of Lapp Cable.
SKINTOP® MS-IS-M 32x1,5
Supplier-ID: 53112790
Description

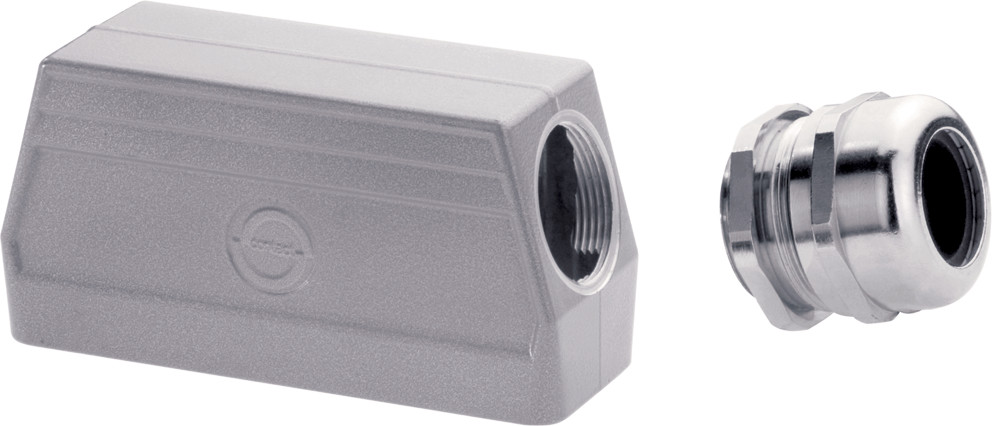

Specially designed for use on industrial connectors., Optimum strain relief, Wide, variable clamping ranges, Short connection thread for more space inside the connector, Metric connection thread according to DIN EN 60423, Basis for technical information DIN IEC 62444,
| Specification | Value |
|---|---|
| Model | Straight |
| Thread type | Metric |
| Material | Metal |
| Material quality | Brass |
| Glass-fibre reinforced | No |
| Shock resistant | No |
| Halogen free | No |
| Operating temperature | -30 - 100 |
| Degree of protection (IP) | IP68 |
| Bend radius protection/trumpet flare | No |
| Nominal thread size inch/gas pipe thread | - |
| Nominal thread size metric/PG | 32 |
| Pitch thread | 1.5 |
| Explosion-tested version | No |
| Thread length | 5 |
| Wrench width | 40 |
| Suitable for cable diameter | 16 - 25 |
| With locknut | No |
| Surface treatment | Nickel-plated |
- Anbau-Kabelstutzen
- Anbaustutzen
- Anbaustutzen für explosionsgefährdete Bereiche
- CONUS-Kabelverschraubung
- DIN-Kabelverschraubung
- EMV-Kabelverschraubung
- EMV-Verschraubung
- EX-Kabelverschraubung
- Explosionsgeschützte Kabelverschraubung
- Flachkabelverschraubung
- ISO-Kabelverschraubung
- Kabeleinführungsstutzen
- Kabelverschraubung
- Kabelverschraubung metrisch
- Kunststoffkabelverschraubung
- Messing-Kabelverschraubung
- MS-Kabelverschraubung
- Reduzier-Kabelverschraubung
- Standardkabelverschraubung
- Stopfbuchsenverschraubung
Product images
Datasheet
Here you can download the product's datasheet.
