SKINTOP® KR-M 16x1,5 ATEX plus BU
Supplier-ID: 54115415
Description
With reducing seal insert, to seal cables with smaller outer diameters., For the benefits, refer to SKINTOP® K-M ATEX plus blue, Metric connection thread according to DIN EN 60423, Basis for technical information DIN IEC 62444,
| Specification | Value |
|---|---|
| Model | Straight |
| Colour | Blue |
| Thread type | Metric |
| Material | Plastic |
| Material quality | Polyamide |
| Glass-fibre reinforced | No |
| Shock resistant | No |
| Halogen free | No |
| Operating temperature | -20 - 80 |
| Degree of protection (IP) | IP68 |
| Bend radius protection/trumpet flare | No |
| Nominal thread size inch/gas pipe thread | - |
| Nominal thread size metric/PG | 16 |
| Pitch thread | - |
| Explosion-tested version | Yes |
| Thread length | 8 |
| Wrench width | 19 |
| Suitable for cable diameter | 4 - 6 |
| With locknut | No |
| Surface treatment | Untreated |
- Anbau-Kabelstutzen
- Anbaustutzen
- Anbaustutzen für explosionsgefährdete Bereiche
- CONUS-Kabelverschraubung
- DIN-Kabelverschraubung
- EMV-Kabelverschraubung
- EMV-Verschraubung
- EX-Kabelverschraubung
- Explosionsgeschützte Kabelverschraubung
- Flachkabelverschraubung
- ISO-Kabelverschraubung
- Kabeleinführungsstutzen
- Kabelverschraubung
- Kabelverschraubung metrisch
- Kunststoffkabelverschraubung
- Messing-Kabelverschraubung
- MS-Kabelverschraubung
- Reduzier-Kabelverschraubung
- Standardkabelverschraubung
- Stopfbuchsenverschraubung

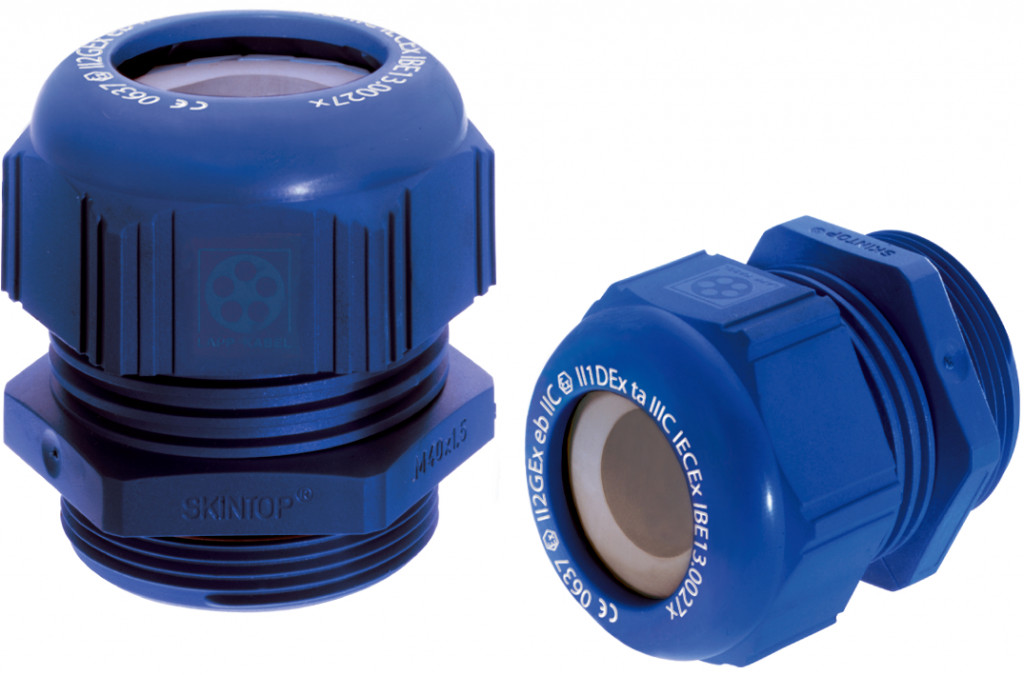

Product images
