SKINDICHT VENT 12x1,5 BK plus
Supplier-ID: 51730201
Description
Simple installation in devices (e.g. control cabinet), Manufacturing of control cabinets and equipment, Measuring technology, Ventilation system for housing, Formation of condensation in electronic housings is prevented, Pressure compensation elements guarantee interference-free and low-maintenance operation, Air flow rate: 100 mbar = 0.8 l/min – standard version Air flow rate: 100 mbar = 3.5 l/min – UL version, Optionally approved according to UL 508 A, Closing element and pressure compensation in one system, Lower space requirement, High air flow,
| Specification | Value |
|---|---|
| Model | Straight |
| Colour | Black |
| Thread type | Metric |
| Material | Plastic |
| Material quality | Polyamide |
| Glass-fibre reinforced | No |
| Halogen free | No |
| Operating temperature | -40 - 100 |
| Degree of protection (IP) | IP68 |
| Bend radius protection/trumpet flare | No |
| Nominal thread size inch/gas pipe thread | - |
| Nominal thread size metric/PG | 12 |
| Pitch thread | 1,5 |
| Explosion-tested version | No |
| Thread length | 10 |
| Wrench width | - |
| Suitable for cable diameter | - |
| With locknut | Yes |
| Surface treatment | - |
| For Ex-Zone dust | - |
| For Ex-zone gas | - |
| Separable screw gland | No |
| Type of sealing | Sealing ring |
| Strain relief | No |
| Flat cable coupling | No |
| Multi seal area | No |

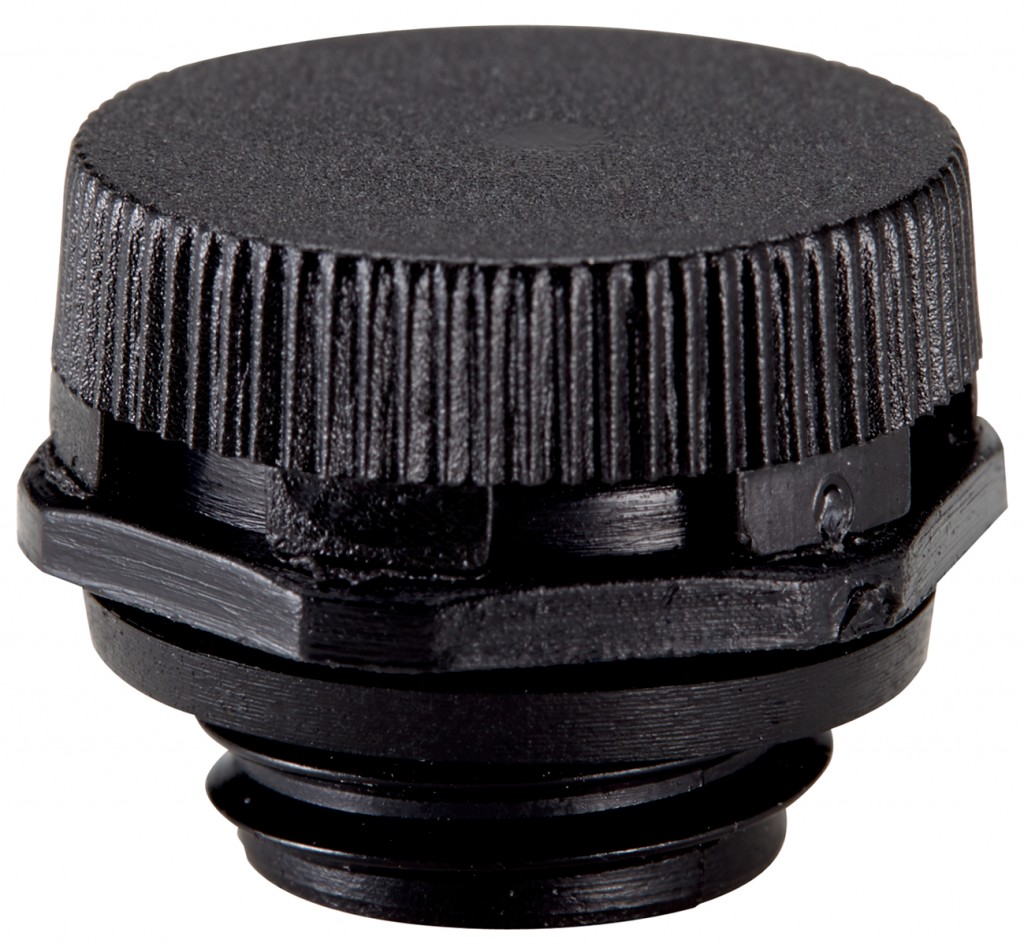

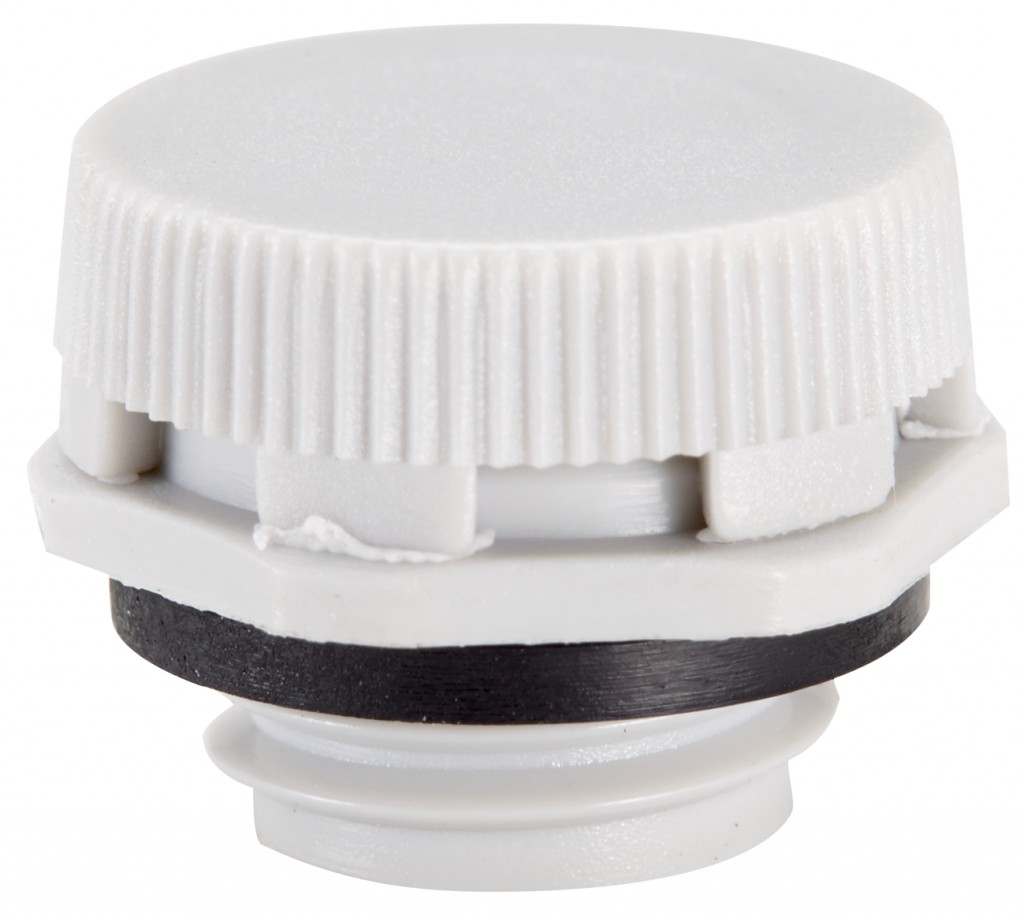

Product images
Datasheet
Here you can download the product's datasheet.
Download datasheetPrice request
