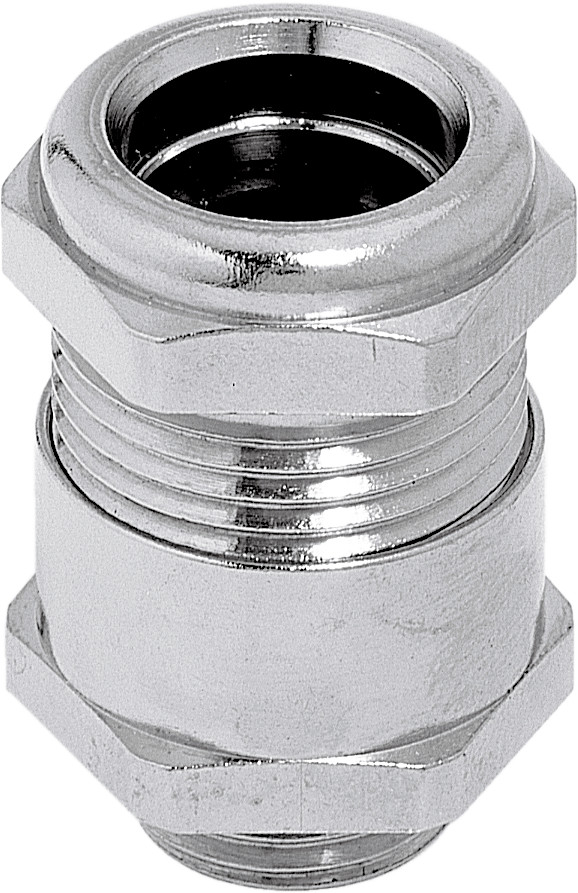

SKINDICHT SHV-M 20x1,5/11/9
Supplier-ID: 52105310
Description
Water pressure-tight cable gland with conical sealing element., Pumps, Float switch, Water pressure-tight, Gentle cable clamping, Robust, High strain relief, Metric connection thread according to DIN EN 60423, Basis for technical information DIN IEC 62444,
| Specification | Value |
|---|---|
| Model | Straight |
| Thread type | Metric |
| Material | Metal |
| Material quality | Brass |
| Glass-fibre reinforced | No |
| Shock resistant | No |
| Halogen free | No |
| Operating temperature | -20 - 80 |
| Degree of protection (IP) | IP68 |
| Bend radius protection/trumpet flare | No |
| Nominal thread size inch/gas pipe thread | - |
| Nominal thread size metric/PG | 20 |
| Pitch thread | 1.5 |
| Explosion-tested version | No |
| Thread length | 6 |
| Wrench width | 22 |
| Suitable for cable diameter | 6.5 - 8.8 |
| With locknut | No |
| Surface treatment | Nickel-plated |
