ETHERLINE® ROBUST Cat.7 FLEX
Supplier-ID: 2170453
Description
Machine tool building, medical technology, laundries, car washing equipment, chemical industry, composting plants, sewage works, For flexible applications (7-wire braided conductor), Food and beverage industry, especially for production and processing of milk and meat products, for industrial secondary and tertiary cabling according to EN 50173-3 ISO/IEC 24702, Outstanding weather, ozone and UV resistance together with the wide temperature range enable versatile use for indoor and outdoor applications, Resistant to contact with bio-oils, fats, waxes and their emulsions with a plant, animal or synthetic basis, ?Good resistance to ammonia compounds and biogases, Good resistance to cold and hot water as well as water-soluble cleaning and cooling agents, Suitable for frequent steam cleaning, Stranded wire, bare, 7-wire, Polyolefin-based core insulation, Screening braid made of tin-plated copper wires, Outer sheath made of special TPE, Colour: black, Halogen-free materials, Good chemical resistance to ester-based hydraulic fluids, Ozone-, UV- and weather-resistant according to EN 50396, Low smoke density according to IEC 61034-2,
Specification | Value |
---|---|
Nominal cross section conductor | - |
Core insulation | Polyolefin |
Core identification | Colour |
Flame retardant | No |
Material outer sheath | Other |
Conductor category | Class 2 = stranded |
Operating temperature, fix | -50 - 80 |
Number of cores | 8 |
Outer diameter approx. | 6,5 |
Low smoke (acc. EN 61034-2) | No |
Stranding element | Pairs |
Screen over stranding element | Foil |
Screen over stranding | Braiding |
Conductor material | Cu, bare |
AWG-size | 26 |
Category | 7 |
NVP value | 71 |

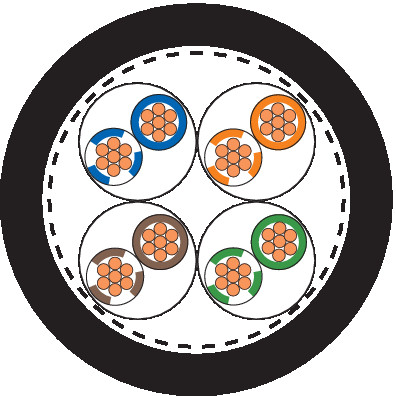

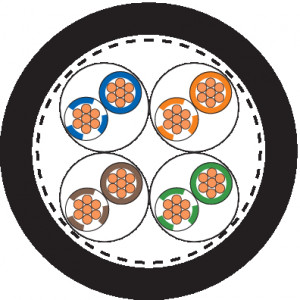

Product images
Datasheet
Here you can download the product's datasheet.
Download datasheetPreise
Amount | Netto | Brutto |
---|---|---|
100m | 321,90€ | 383,06€ |
500m | 1.448,02€ | 1.723,14€ |
1000m | 2.644,86€ | 3.147,38€ |
Price calculation
Below you can calculate the total price (including copper surcharge) for your desired cable length. Please note, that the copper surcharge will depend on the current stock exchange rate (today: 891,00€/100kg).
For further information regarding the shipment or mass-discounts you can contact us. Please note, that will charge an additional 15,00€ for cutting if you order less than 100 meters or other non-standard sizes.
For orders of less than 150,00€ product value we will charge a fee of 25,00€. Purchase on account - a credit check may be required. All Lapp products will be shipped free of charge within Germany for orders of 350,00€ or more
