Letronic e.K. is official distributor of Lapp Cable.
ETHERLINE® TORSION P CAT6A 4X2XAWG24/7
Supplier-ID: 2170483
Description
Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG), Can be used for Industrial Ethernet in harsh industrial environments, suitable for EtherCAT and EtherNet/IP applications, max. cable length for 100 Mbit/s is 85 m, max. cable length for 10 Mbit/s is 85 m, Can be used for Industrial Ethernet in harsh industrial environments, Many applications with Industrial Ethernet, e.g. PROFINET, i.e. fixed installation, flexible use as well as TORSION., Premium screening against electromagnetic interference, 4-pair: 100 Mbit/s up to 10 Gbit/s for Industrial Ethernet, 7-wire stranded wire made of tin-plated copper wires, Core insulation made of polyethylene (PE), S/FTP: Copper braid as overall shielding and pair screening with aluminium compound foil, Colour: green (similar to RAL 6018), Outer sheath: PUR, halogen-free/PVC, electrical requirements according to IEC 61156-6, PUR: UL/CSA-certified (CMX), PUR versions: UL AWM Style 21576, PVC cable is UL/CSA-certified (CM), Flame-retardant according to IEC 60332-1-2, PUR version is halogen-free according to IEC 60754, Oil-resistant according to IEC 60811-2-1, Cable suitable for high torsion. Tested with more than 1 million bending cycles and a right/left movement of 180° per metre, Meets the requirements according to CAT.6A, ISO/IEC 11801 and EN 50173,
| Specification | Value |
|---|---|
| Core insulation | Polyolefin |
| Core identification | Colour |
| Flame retardant | - |
| Colour outer sheath | Green |
| Material outer sheath | PUR (Polyurethane) |
| Conductor category | Class 2 = stranded |
| Operating temperature, flexible | -30 - 70 |
| Operating temperature, fix | -40 - 80 |
| Number of cores | 8 |
| Outer diameter approx. | 9 |
| Low smoke (acc. EN 61034-2) | No |
| Stranding element | Pairs |
| Screen over stranding element | Foil |
| Screen over stranding | Foil + braiding |
| Conductor material | Cu, tinned |
| AWG-size | 24 |
| Category | 6A (IEC) |

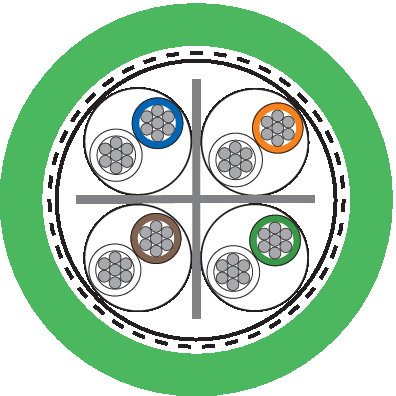

Product images
Datasheet
Here you can download the product's datasheet.
Download datasheetPreise
| Amount | Netto | Brutto |
|---|---|---|
| 100m | 758,43€ | 902,53€ |
| 500m | 3.498,23€ | 4.162,89€ |
| 1000m | 6.604,54€ | 7.859,40€ |
Price calculation
Below you can calculate the total price (including copper surcharge) for your desired cable length. Please note, that the copper surcharge will depend on the current stock exchange rate (today: 891,00€/100kg).
For further information regarding the shipment or mass-discounts you can contact us. Please note, that will charge an additional 15,00€ for cutting if you order less than 100 meters or other non-standard sizes.
For orders of less than 150,00€ product value we will charge a fee of 25,00€. Purchase on account - a credit check may be required. All Lapp products will be shipped free of charge within Germany for orders of 350,00€ or more
