ETHERLINE® FD P CAT.6 4X2XAWG26
Supplier-ID: 2170488
Description
For use in drag chains and constantly moving machinery parts in dry or damp rooms, Only for patch cable applications (max. 60 m), suitable for EtherCAT and EtherNet/IP applications, Plant construction, machinery manufacturing, 4-pair: 10/100/1000 Mbit/s for Industrial Ethernet, Premium screening against electromagnetic interference, Highly flexible data cable with PUR outer sheath, meets the highest service life requirements, even under harsh climatic conditions., Braided conductor, tin-plated, AWG 26 (19-wire), PP core insulation, Inner sheath: Thermoplastic copolymer (FRNC), PUR outer sheath, halogen-free, Colour: green (similar to RAL 6018), SF/UTP: Braid of tin-plated copper wire and laminated aluminium foil as overall shielding, UL/CSA type CMX (UL 444), Flame-retardant according to IEC 60332-1-2, PUR outer sheath is resistant to many oils and hydraulic fluids, CAT.6 cable for drag chain!, Designed for 1 – 2 million alternating bending cycles in the power chain,
| Specification | Value |
|---|---|
| Core insulation | Polypropylene |
| Core identification | Colour |
| Flame retardant | - |
| Colour outer sheath | Green |
| Material outer sheath | PUR (Polyurethane) |
| Conductor category | Class 6 = very flexible |
| Operating temperature, fix | -30 - 80 |
| Number of cores | 8 |
| Outer diameter approx. | 7,8 |
| Low smoke (acc. EN 61034-2) | No |
| Stranding element | Pairs |
| Screen over stranding element | None |
| Screen over stranding | Foil + braiding |
| Conductor material | Cu, tinned |
| AWG-size | 26 |
| NVP value | 67 |

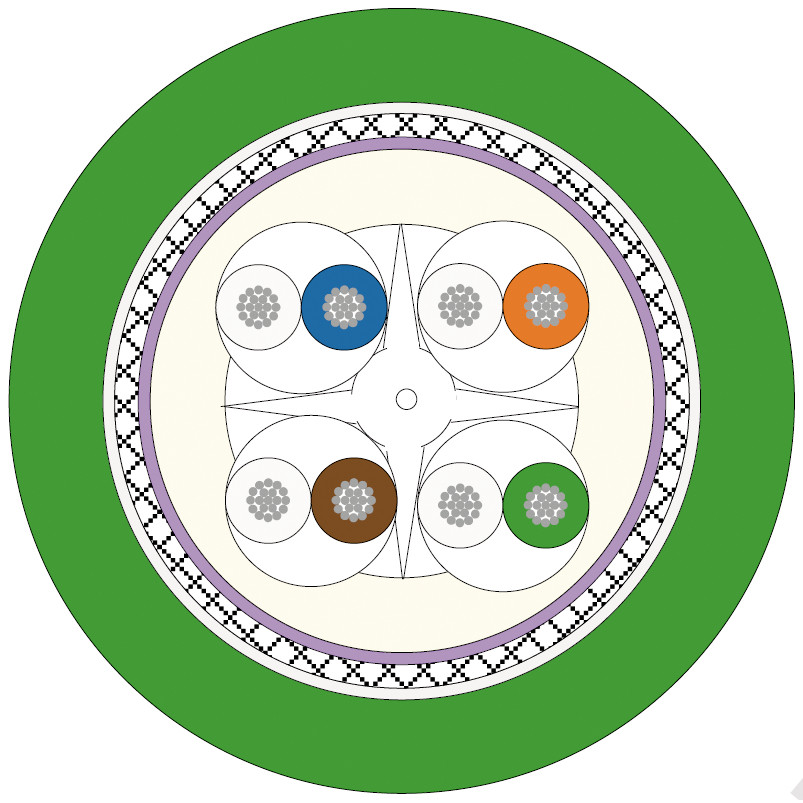

Product images
Datasheet
Here you can download the product's datasheet.
Download datasheetPreise
| Amount | Netto | Brutto |
|---|---|---|
| 100m | 492,12€ | 585,63€ |
| 500m | 2.331,08€ | 2.773,98€ |
| 1000m | 4.273,55€ | 5.085,53€ |
Price calculation
Below you can calculate the total price (including copper surcharge) for your desired cable length. Please note, that the copper surcharge will depend on the current stock exchange rate (today: 891,00€/100kg).
For further information regarding the shipment or mass-discounts you can contact us. Please note, that will charge an additional 15,00€ for cutting if you order less than 100 meters or other non-standard sizes.
For orders of less than 150,00€ product value we will charge a fee of 25,00€. Purchase on account - a credit check may be required. All Lapp products will be shipped free of charge within Germany for orders of 350,00€ or more
