ETHERLINE® FD P FC CAT5 2x2xAWG22
Supplier-ID: 2170894
Description
Power chain applications, Wiring machines, devices, and control cabinets, max. cable length for 100 Mbit/s is 85 m, suitable for EtherCAT and EtherNet/IP applications, Shielded against interference signals, 2-pair: 10/100 Mbit/s for Industrial Ethernet, Can be used for Industrial Ethernet in harsh industrial environments, Can be used in dry or damp rooms, Fine-wire strand made of tin-plated copper wires, Inner sheath: Thermoplastic copolymer (FRNC), Overall shielding with copper braiding and plastic-laminated aluminium foil, PUR outer sheath, halogen-free, Colour: green (similar to RAL 6018), Star quad, Colour-coded in accordance with PROFINET for Cat.5 applications, UL/CSA type CMX (UL 444), PUR outer sheath is highly resistant to mineral oils and abrasion, Flame-retardant according to IEC 60332-1-2, CAT.5 performance, Broad usages due to halogen-free materials, Optimised cable construction for power chain use,
| Specification | Value |
|---|---|
| Core insulation | PE |
| Core identification | Colour |
| Flame retardant | - |
| Colour outer sheath | Green |
| Material outer sheath | PUR (Polyurethane) |
| Conductor category | Class 2 = stranded |
| Operating temperature, fix | -30 - 70 |
| Number of cores | 4 |
| Outer diameter approx. | 6,5 |
| Low smoke (acc. EN 61034-2) | No |
| Stranding element | Quad |
| Screen over stranding element | None |
| Screen over stranding | Foil + braiding |
| Conductor material | Cu, tinned |
| AWG-size | 22 |
| Category | 5 |
| NVP value | 67 |

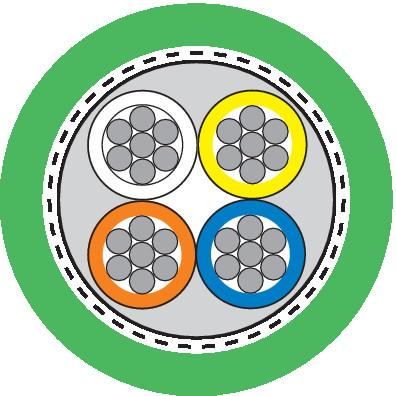

Product images
Datasheet
Here you can download the product's datasheet.
Download datasheetPreise
| Amount | Netto | Brutto |
|---|---|---|
| 100m | 403,16€ | 479,77€ |
| 500m | 1.889,35€ | 2.248,33€ |
| 1000m | 3.610,07€ | 4.295,98€ |
Price calculation
Below you can calculate the total price (including copper surcharge) for your desired cable length. Please note, that the copper surcharge will depend on the current stock exchange rate (today: 891,00€/100kg).
For further information regarding the shipment or mass-discounts you can contact us. Please note, that will charge an additional 15,00€ for cutting if you order less than 100 meters or other non-standard sizes.
For orders of less than 150,00€ product value we will charge a fee of 25,00€. Purchase on account - a credit check may be required. All Lapp products will be shipped free of charge within Germany for orders of 350,00€ or more
