Letronic e.K. is official distributor of Lapp Cable.
ETHERLINE® CAT.5e 105 plus 2x2xAWG22/7
Supplier-ID: 2170636
Description
for installation in hollow shaft between gear unit and pitch system, suitable for fixed installation and occasionally flexible use in high temperature areas, max. cable length for 100 Mbit/s is 85 m, suitable for EtherCAT and EtherNet/IP applications, Wiring machines, devices, and control cabinets, No need for additional cable protection against high temperatures, High temperature resistance, Industrial use, Premium screening against electromagnetic interference, 2-pair: 10/100 Mbit/s for Industrial Ethernet, Braided conductor, 7-wire, bare, Core insulation: Polyethylene (PE), Overall shielding with copper braiding and plastic-laminated aluminium foil, Outer sheath based on TPE, Colour: green (similar to RAL 6018), Colour-coded in accordance with PROFINET for Cat.5 applications, electrical requirements according to IEC 61156-5, Optimum EMC protection, Permanent load up to +105°C, temporary load +120°C,
| Specification | Value |
|---|---|
| Core insulation | Polyolefin |
| Core identification | Colour |
| Flame retardant | No |
| Colour outer sheath | Green |
| Material outer sheath | Other |
| Conductor category | Class 2 = stranded |
| Operating temperature, fix | -40 - 105 |
| Number of cores | 4 |
| Outer diameter approx. | 6,5 |
| Low smoke (acc. EN 61034-2) | No |
| Stranding element | Quad |
| Screen over stranding element | None |
| Screen over stranding | Foil + braiding |
| Conductor material | Cu, bare |
| AWG-size | 22 |
| Category | 5E |

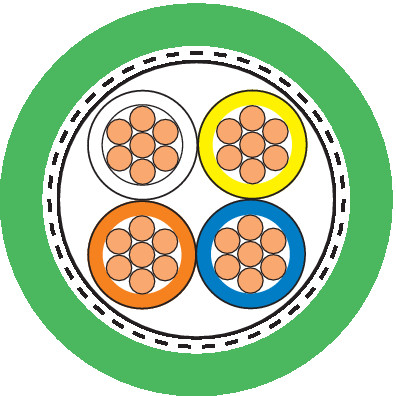

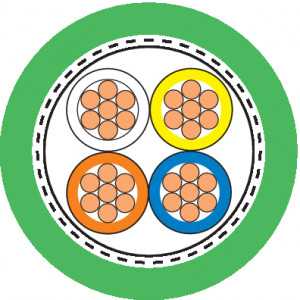

Product images
Datasheet
Here you can download the product's datasheet.
Download datasheetPreise
| Amount | Netto | Brutto |
|---|---|---|
| 100m | 355,12€ | 422,60€ |
| 500m | 1.664,93€ | 1.981,27€ |
| 1000m | 3.197,04€ | 3.804,48€ |
Price calculation
Below you can calculate the total price (including copper surcharge) for your desired cable length. Please note, that the copper surcharge will depend on the current stock exchange rate (today: 891,00€/100kg).
For further information regarding the shipment or mass-discounts you can contact us. Please note, that will charge an additional 15,00€ for cutting if you order less than 100 meters or other non-standard sizes.
For orders of less than 150,00€ product value we will charge a fee of 25,00€. Purchase on account - a credit check may be required. All Lapp products will be shipped free of charge within Germany for orders of 350,00€ or more
