Letronic e.K. is official distributor of Lapp Cable.
UNITR. BUS PB FD P HYBRID 1X2X0,64+4X1,5
Supplier-ID: 2170495
Description
PROFIBUS DP (in accordance with DIN 19245 and EN 50170, e.g. for SIEMENS SIMATIC® NET, also for FIP - Factory Instrumentation Protocol)., Cables can be used for PROFIBUS-DP as well as PROFIBUS-FMS and FIP, For use wherever the combination of a halogen-free outer sheath with properties similar to polyurethane and enhanced flame-retardance is required, For highly flexible applications (drag chains, frequently moving machine components), Cores for power supply 4 x 1.5 mm2 (AWG16), HYBRID: Cable for data transmission and power supply, Flame-retardant according to IEC 60332-1-2, Oil-resistant,
| Specification | Value |
|---|---|
| Nominal cross section conductor | 1,5 |
| Core insulation | PE |
| Core identification | Colour |
| Flame retardant | In accordance with EN 60332-1-2 |
| Colour outer sheath | Other |
| Material outer sheath | PUR (Polyurethane) |
| Conductor category | Class 6 = very flexible |
| Operating temperature, flexible | -30 - 60 |
| Operating temperature, fix | -40 - 70 |
| Number of cores | 6 |
| Halogen free (acc. EN 50267-2-2) | Yes |
| Outer diameter approx. | 11,3 |
| Low smoke (acc. EN 61034-2) | No |
| Stranding element | Pairs |
| Screen over stranding element | Foil + braiding |
| Screen over stranding | Foil |
| Diameter conductor | 0,64 |
| Conductor material | Cu, bare |
| AWG-size | - |
| Category | Other |
| NVP value | - |

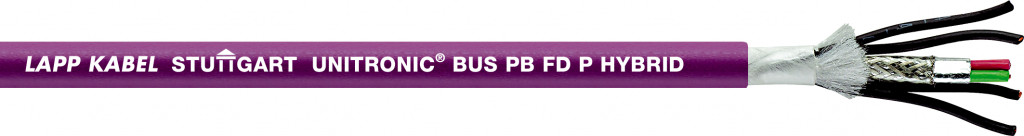

Product images
Datasheet
Here you can download the product's datasheet.
Download datasheetPreise
| Amount | Netto | Brutto |
|---|---|---|
| 100m | 820,36€ | 976,22€ |
| 500m | 3.994,24€ | 4.753,14€ |
| 1000m | 7.665,84€ | 9.122,35€ |
Price calculation
Below you can calculate the total price (including copper surcharge) for your desired cable length. Please note, that the copper surcharge will depend on the current stock exchange rate (today: 891,00€/100kg).
For further information regarding the shipment or mass-discounts you can contact us. Please note, that will charge an additional 15,00€ for cutting if you order less than 100 meters or other non-standard sizes.
For orders of less than 150,00€ product value we will charge a fee of 25,00€. Purchase on account - a credit check may be required. All Lapp products will be shipped free of charge within Germany for orders of 350,00€ or more
