Letronic e.K. is official distributor of Lapp Cable.
ÖLFLEX® TRUCK 170 TWIN 2x25/TÜ.EGG.091-04
Supplier-ID: 7027058
Description
Battery cable between the power source and the end user, tested according to ECE-R 118.01, Polarity identification is possible without stripping or external marking (the item designation is always printed on the positive pole). This rules out incorrect connections, No brushing of the strands after stripping and therefore optimum subsequent handling, for example when crimping/contacting, Special ADR approval, Conductor made of bare copper wires, PVC-based core insulation, Special PVC-based outer sheath, ADR certification TÜ.EGG.091-04, Double-sheathed, very robust and therefore for installation without corrugated pipe, Very strong bar connection but offering easy separation of the cable by hand,
| Specification | Value |
|---|---|
| Model | Flat |
| Nominal cross section conductor | 25 |
| Core insulation | PVC |
| Core identification | Colour |
| Flame retardant | - |
| Oil resistant (acc. EN 60811-2-1) | No |
| Nominal voltage U | 60 |
| Colour outer sheath | Black |
| Material outer sheath | PVC |
| Conductor category | Class 5 = flexible |
| Protective conductor | No |
| Operating temperature, flexible | - - - |
| Operating temperature, fix | -40 - 85 |
| Nominal voltage U0 | 60 |
| Screen | No |
| Number of cores | 2 |
| Halogen free (acc. EN 50267-2-2) | No |
| Cable width approx. | 25.6 |
| Cable height approx. | 12.3 |
| Max. conductor temperature | - |
| Outer diameter approx. | - |
| Low smoke (acc. EN 61034-2) | No |

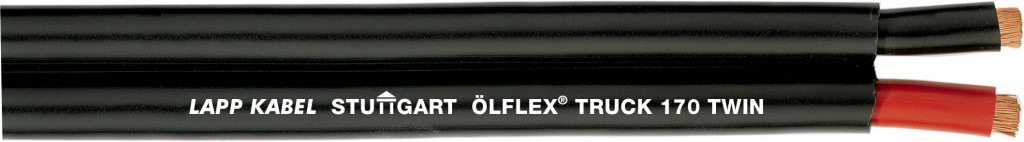

Product images
Datasheet
Here you can download the product's datasheet.
Download datasheetPreise
| Amount | Netto | Brutto |
|---|---|---|
| 100m | 1.339,69€ | 1.594,23€ |
| 500m | 6.243,24€ | 7.429,46€ |
| 1000m | 12.486,48€ | 14.858,92€ |
Price calculation
Below you can calculate the total price (including copper surcharge) for your desired cable length. Please note, that the copper surcharge will depend on the current stock exchange rate (today: 891,00€/100kg).
For further information regarding the shipment or mass-discounts you can contact us. Please note, that will charge an additional 15,00€ for cutting if you order less than 100 meters or other non-standard sizes.
For orders of less than 150,00€ product value we will charge a fee of 25,00€. Purchase on account - a credit check may be required. All Lapp products will be shipped free of charge within Germany for orders of 350,00€ or more
