ETHERLINE® TORSION P CAT5 AWM 2X2XAWG22
Supplier-ID: 2170888
Description
Many applications with Industrial Ethernet, e.g. PROFINET, i.e. fixed installation, flexible use as well as TORSION., Wiring machines, devices, and control cabinets, suitable for EtherCAT and EtherNet/IP applications, max. cable length for 100 Mbit/s is 55 m, Industrial Ethernet cable, 2-pair, suitable for torsion stress, Shielded against interference signals, Can be used for Industrial Ethernet in harsh industrial environments, Can be used in dry or damp rooms, 2-pair: 10/100 Mbit/s for Industrial Ethernet, Braided conductor, tin-plated, AWG 22 (19-wire), PE core insulation, Star quad, Polyurethane (PUR) sheath, green (RAL 6018), Screening braid made of tin-plated copper wires, Fleece wrapping, UL AWM (Style 21161), Halogen-free according to VDE 0472-815, Flame-retardant according to IEC 60332-1-2, Cable suitable for high torsion. Tested with more than 1 million bending cycles and a right/left movement of 180° per metre, Outer sheath with high abrasion-resistance, Broad usages due to halogen-free materials, PUR outer sheath is highly resistant to mineral oils and abrasion,
| Specification | Value |
|---|---|
| Nominal cross section conductor | - |
| Core insulation | PE |
| Core identification | Colour |
| Flame retardant | - |
| Colour outer sheath | Green |
| Material outer sheath | PUR (Polyurethane) |
| Conductor category | Class 6 = very flexible |
| Operating temperature, fix | -40 - 80 |
| Number of cores | 4 |
| Outer diameter approx. | 6,5 |
| Low smoke (acc. EN 61034-2) | No |
| Stranding element | Quad |
| Screen over stranding element | None |
| Screen over stranding | Foil + braiding |
| Conductor material | Cu, tinned |
| AWG-size | 22 |
| Category | 5 |
| NVP value | 63 |

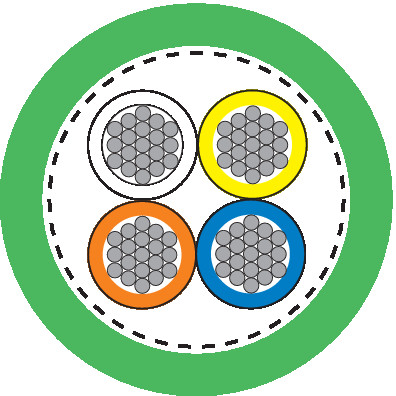

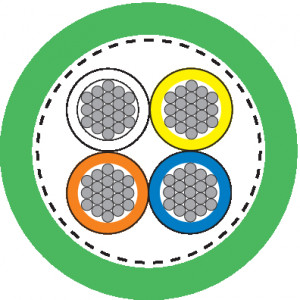

Product images
Datasheet
Here you can download the product's datasheet.
Download datasheetPreise
| Amount | Netto | Brutto |
|---|---|---|
| 100m | 571,55€ | 680,15€ |
| 500m | 2.590,54€ | 3.082,74€ |
| 1000m | 5.181,08€ | 6.165,49€ |
Price calculation
Below you can calculate the total price (including copper surcharge) for your desired cable length. Please note, that the copper surcharge will depend on the current stock exchange rate (today: 891,00€/100kg).
For further information regarding the shipment or mass-discounts you can contact us. Please note, that will charge an additional 15,00€ for cutting if you order less than 100 meters or other non-standard sizes.
For orders of less than 150,00€ product value we will charge a fee of 25,00€. Purchase on account - a credit check may be required. All Lapp products will be shipped free of charge within Germany for orders of 350,00€ or more
