ETHERLINE® FD P CAT5e 4X2XAWG26
Supplier-ID: 2170489
Description
2-pair: 10/100 Mbit/s for Industrial Ethernet, Only for patch cable applications (max. 60 m), Power chain applications, suitable for EtherCAT and EtherNet/IP applications, 4-pair: 10/100/1000 Mbit/s for Industrial Ethernet, PUR cables: 1000 V UL- rating for installation next to power cables, Shielded against interference signals, Seamless communication from the sensor/actuator level to the internet possible, Industrial use, Can be used in dry or damp rooms, Colour: water blue (RAL 5021), Bare stranded copper wire, 0.14 mm2 (19x0.10), (26AWG), Inner sheath: thermoplastic elastomer, halogen-free, Screening braid made of tin-plated copper wires, PUR outer sheath, 2- or 4-pair version, PUR versions: UL AWM Style 21576, Flame-retardant according to IEC 60332-1-2, Halogen-free according to IEC 60754-1 (amount of halogen acidic gas) Corrosiveness of combustion gases according to IEC 60754-2 (degree of acidity), Premium screening against electromagnetic interference, PUR outer sheath is highly resistant to mineral oils and abrasion, Halogen-free outer sheath, PUR cables: 1000 V UL- rating for installation next to power cables,
| Specification | Value |
|---|---|
| Nominal cross section conductor | - |
| Core insulation | Polyolefin |
| Core identification | Colour |
| Flame retardant | - |
| Colour outer sheath | Blue |
| Material outer sheath | PUR (Polyurethane) |
| Conductor category | Class 6 = very flexible |
| Operating temperature, fix | -30 - 80 |
| Number of cores | 8 |
| Outer diameter approx. | 6,3 |
| Low smoke (acc. EN 61034-2) | No |
| Stranding element | Pairs |
| Screen over stranding element | None |
| Screen over stranding | Foil + braiding |
| Conductor material | Cu, bare |
| AWG-size | 26 |
| Category | 5E |
| NVP value | 65 |

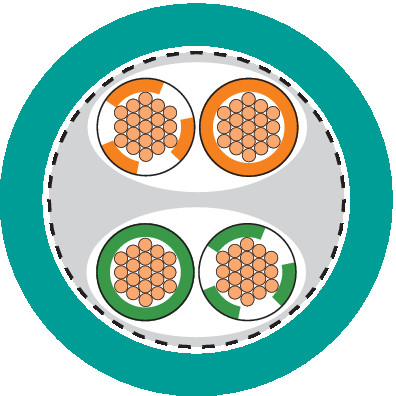

Product images
Datasheet
Here you can download the product's datasheet.
Download datasheetPreise
| Amount | Netto | Brutto |
|---|---|---|
| 100m | 358,86€ | 427,04€ |
| 500m | 1.612,09€ | 1.918,39€ |
| 1000m | 3.224,19€ | 3.836,78€ |
Price calculation
Below you can calculate the total price (including copper surcharge) for your desired cable length. Please note, that the copper surcharge will depend on the current stock exchange rate (today: 891,00€/100kg).
For further information regarding the shipment or mass-discounts you can contact us. Please note, that will charge an additional 15,00€ for cutting if you order less than 100 meters or other non-standard sizes.
For orders of less than 150,00€ product value we will charge a fee of 25,00€. Purchase on account - a credit check may be required. All Lapp products will be shipped free of charge within Germany for orders of 350,00€ or more
