ETHERLINE® FIRE Cat.5e PH120 4x2x23/1 AWG
Supplier-ID: 2170905
Description
In industrial areas with highly combustible materials or environments with high temperatures, Highly combustible areas or areas at risk of fire, for fixed installation, For indoor use, Insulation integrity in the event of a fire according to EN50200 - classification PH 120, high-quality, double screening ensures high transmission reliability in areas with electromagnetic interference, Solid bare copper conductor, Polyolefin-based core insulation, Wrapping cores with special tape (anti-fire barrier), Twisting: 2 cores in pairs, 4 pairs twisted, F/UTP: Foil shielding as overall shielding, Halogen-free and flame-retardant FRNC outer sheath, colour: red (similar to RAL 3000), Fire behaviour: - Halogen-free (IEC 60754-1 & EN50267-2-1) - Flame-retardant (IEC 60332-1) - Fire-retardant (IEC 60332-3-24) - Smoke density (IEC 61034-2) - Insulation integrity (EN50200); 120 min, Meets the requirements according to CAT.5e, ISO/IEC 11801 and EN 50173, class D,
| Specification | Value |
|---|---|
| Nominal cross section conductor | 0,25 |
| Core insulation | Polyolefin |
| Core identification | Colour |
| Colour outer sheath | Red |
| Material outer sheath | Other |
| Conductor category | Class 5 = flexible |
| Operating temperature, flexible | -20 - 70 |
| Operating temperature, fix | - |
| Number of cores | 8 |
| Halogen free (acc. EN 50267-2-2) | Yes |
| Outer diameter approx. | 8,6 |
| Low smoke (acc. EN 61034-2) | No |
| Stranding element | Pairs |
| Screen over stranding element | None |
| Screen over stranding | Foil |
| Diameter conductor | 0,95 |
| Conductor material | Cu, bare |
| AWG-size | 23 |
| Category | 5E |
| NVP value | 67 |

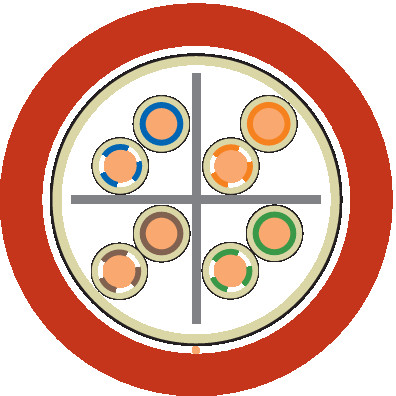

Product images
Datasheet
Here you can download the product's datasheet.
Download datasheetPreise
| Amount | Netto | Brutto |
|---|---|---|
| 100m | 955,54€ | 1.137,09€ |
| 500m | 4.074,70€ | 4.848,90€ |
| 1000m | 8.149,40€ | 9.697,79€ |
Price calculation
Below you can calculate the total price (including copper surcharge) for your desired cable length. Please note, that the copper surcharge will depend on the current stock exchange rate (today: 891,00€/100kg).
For further information regarding the shipment or mass-discounts you can contact us. Please note, that will charge an additional 15,00€ for cutting if you order less than 100 meters or other non-standard sizes.
For orders of less than 150,00€ product value we will charge a fee of 25,00€. Purchase on account - a credit check may be required. All Lapp products will be shipped free of charge within Germany for orders of 350,00€ or more
