Letronic e.K. is official distributor of Lapp Cable.
ETHERLINE® H-H CAT.5e 4X2XAWG24/1
Supplier-ID: 2170298
Description
2-pair: 10/100 Mbit/s for Industrial Ethernet, suitable for EtherCAT and EtherNet/IP applications, Industrial use, Fixed installation, 4-pair: 10/100/1000 Mbit/s for Industrial Ethernet, Seamless communication from the sensor/actuator level to the internet possible, Shielded against interference signals, Can be used in dry or damp rooms, Can be used for Industrial Ethernet in harsh industrial environments, PUR cables: 1000 V UL- rating for installation next to power cables, Solid conductor, Core insulation made of foam skin, SF/UTP: Braid of tin-plated copper wire and laminated aluminium foil as overall shielding, Outer sheath as either PUR or LSZH, Colour: water blue (RAL 5021), 2- or 4-pair version, PUR versions: UL AWM Style 21576, Flame-retardant according to IEC 60332-1-2, Halogen-free according to IEC 60754-1 (amount of halogen acidic gas) Corrosiveness of combustion gases according to IEC 60754-2 (degree of acidity), high-quality, double screening ensures high transmission reliability in areas with electromagnetic interference, PUR outer sheath is highly resistant to mineral oils and abrasion, Halogen-free outer sheath,
| Specification | Value |
|---|---|
| Core insulation | Foam-Skin-PE |
| Core identification | Colour |
| Flame retardant | - |
| Colour outer sheath | Blue |
| Material outer sheath | Other |
| Conductor category | Class 1 = solid |
| Operating temperature, flexible | -5 - 60 |
| Operating temperature, fix | -30 - 60 |
| Number of cores | 8 |
| Outer diameter approx. | 8,3 |
| Low smoke (acc. EN 61034-2) | No |
| Stranding element | Pairs |
| Screen over stranding element | None |
| Screen over stranding | Foil + braiding |
| Diameter conductor | 0,51 |
| Conductor material | Cu, bare |
| AWG-size | 24 |
| Category | 5E |
| NVP value | 77 |

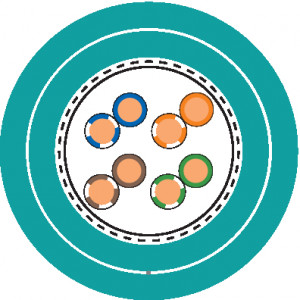

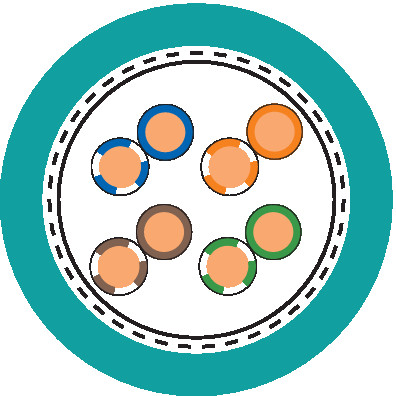

Product images
Datasheet
Here you can download the product's datasheet.
Download datasheetPreise
| Amount | Netto | Brutto |
|---|---|---|
| 100m | 202,77€ | 241,29€ |
| 500m | 907,59€ | 1.080,03€ |
| 1000m | 1.815,17€ | 2.160,06€ |
Price calculation
Below you can calculate the total price (including copper surcharge) for your desired cable length. Please note, that the copper surcharge will depend on the current stock exchange rate (today: 891,00€/100kg).
For further information regarding the shipment or mass-discounts you can contact us. Please note, that will charge an additional 15,00€ for cutting if you order less than 100 meters or other non-standard sizes.
For orders of less than 150,00€ product value we will charge a fee of 25,00€. Purchase on account - a credit check may be required. All Lapp products will be shipped free of charge within Germany for orders of 350,00€ or more
