ETHERLINE® Y EC FLEX Cat.5e

Supplier-ID: 2170430

Description

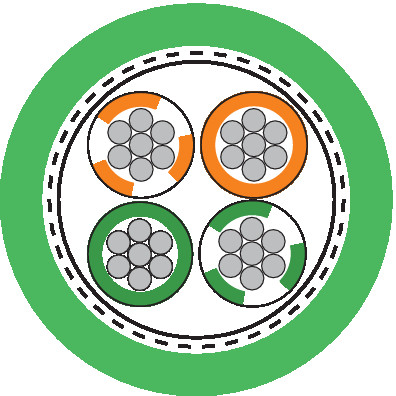

suitable for EtherCAT and EtherNet/IP applications, For flexible applications (7-wire braided conductor), Many applications with Industrial Ethernet, i.e. fixed installation and flexible use., For internal wiring of electric and electronic components in switch cabinets, Only for patch cable applications (max. 60 m), Can be used for Industrial Ethernet in harsh industrial environments, Can be used in dry or damp rooms, Lower space requirement, tin-plated copper strands, 7-wire, Core insulation: Polyethylene (PE), Core colour coding: orange/white-orange; green/white-green, Star quad, SF/UTP: Braid of tin-plated copper wire and laminated aluminium foil as overall shielding, PVC or PUR outer sheath material, Colour: green (similar to RAL 6018), Certification: UL/CSA type CMX in accordance with UL 444 and CSA C22.2 no. 214, Flame-retardant according to UL VW1/CSA FT1, PUR (polyurethane) version with increased robustness, UV resistance and halogen-free, Meets the requirements according to CAT.5e, ISO/IEC 11801 and EN 50173, class D, high-quality, double screening ensures high transmission reliability in areas with electromagnetic interference,
