ETHERLINE® PN Cat.5e FRNC FLEX FC
Supplier-ID: 2170890
Description
for industrial secondary and tertiary cabling according to EN 50173-3 ISO/IEC 24702, For flexible applications (7-wire braided conductor), Wiring machines, devices, and control cabinets, suitable for EtherCAT and EtherNet/IP applications, max. cable length for 100 Mbit/s is 85 m, Shielded against interference signals, For PROFINET applications type B, Can be used for Industrial Ethernet in harsh industrial environments, Can be used in dry or damp rooms, 2-pair: 10/100 Mbit/s for Industrial Ethernet, Stranded wire, bare, 7-wire, Core insulation: PE or PP, Inner sheath made of PVC or FRNC, Overall shielding with copper braiding and plastic-laminated aluminium foil, PVC or FRNC outer sheath material, Colour: green (similar to RAL 6018), Star quad, The cable is UL/CSA-certified (CMG), ETHERLINE® PN Cat.5 Y FLEX FC: ECOLAB® Industry standard for innovations and efficiency in the field of professional cleaning and disinfection, Flame-retardant according to CSA FT4 UL Vertical-Tray Flame Test, CAT.5 performance, FRNC version: Halogen-free and flame-retardant, Fast Connect (FC) cable design,
| Specification | Value |
|---|---|
| Core insulation | PE |
| Core identification | Colour |
| Flame retardant | In accordance with EN 60332-3-24 |
| Colour outer sheath | Green |
| Material outer sheath | Other |
| Conductor category | Class 2 = stranded |
| Operating temperature, fix | -25 - 80 |
| Number of cores | 4 |
| Outer diameter approx. | 6,5 |
| Low smoke (acc. EN 61034-2) | No |
| Stranding element | Quad |
| Screen over stranding element | None |
| Screen over stranding | Foil + braiding |
| Conductor material | Cu, bare |
| AWG-size | 22 |
| Category | 5E |

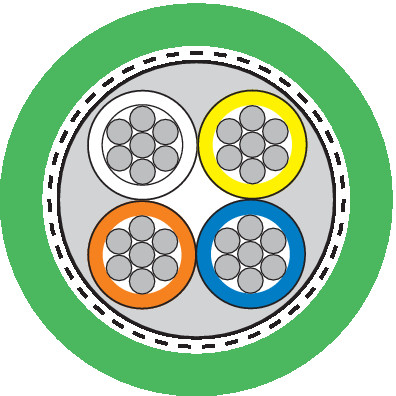

Product images
Datasheet
Here you can download the product's datasheet.
Download datasheetPreise
| Amount | Netto | Brutto |
|---|---|---|
| 100m | 290,99€ | 346,28€ |
| 500m | 1.349,43€ | 1.605,82€ |
| 1000m | 2.698,86€ | 3.211,65€ |
Price calculation
Below you can calculate the total price (including copper surcharge) for your desired cable length. Please note, that the copper surcharge will depend on the current stock exchange rate (today: 891,00€/100kg).
For further information regarding the shipment or mass-discounts you can contact us. Please note, that will charge an additional 15,00€ for cutting if you order less than 100 meters or other non-standard sizes.
For orders of less than 150,00€ product value we will charge a fee of 25,00€. Purchase on account - a credit check may be required. All Lapp products will be shipped free of charge within Germany for orders of 350,00€ or more
