ETHERLINE® H FLEX CAT. 5 2x2x26/7AWG
Supplier-ID: 2170283
Description
2-pair: 10/100 Mbit/s for Industrial Ethernet, For flexible applications (7-wire braided conductor), Only for patch cable applications (max. 60 m), suitable for EtherCAT and EtherNet/IP applications, 4-pair: 10/100/1000 Mbit/s for Industrial Ethernet, PUR cables: 1000 V UL- rating for installation next to power cables, Seamless communication from the sensor/actuator level to the internet possible, Shielded against interference signals, Can be used in dry or damp rooms, Can be used for Industrial Ethernet in harsh industrial environments, SF/UTP: Braid of tin-plated copper wire and laminated aluminium foil as overall shielding, Core insulation made of foam skin, Braided conductor, bare, 7-wire, Outer sheath as either PUR or LSZH, Colour: water blue (RAL 5021), 2- or 4-pair version, PVC outer sheath colour: green (similar to RAL 6018), PVC version with UL/CSA (CMX) certification, PUR versions: UL AWM Style 21576, Flame-retardant according to IEC 60332-1-2, Cables with PUR or halogen-free material: halogen-free according to IEC 60754-1 (amount of halogen acidic gas) Corrosiveness of combustion gas according to IEC 60754-2 (degree of acidity), high-quality, double screening ensures high transmission reliability in areas with electromagnetic interference, Halogen-free outer sheath, PUR outer sheath is highly resistant to mineral oils and abrasion,
| Specification | Value |
|---|---|
| Nominal cross section conductor | - |
| Core insulation | PE |
| Core identification | Colour |
| Flame retardant | - |
| Colour outer sheath | Blue |
| Material outer sheath | Other |
| Conductor category | Class 2 = stranded |
| Operating temperature, fix | -30 - 80 |
| Number of cores | 4 |
| Outer diameter approx. | 5,9 |
| Low smoke (acc. EN 61034-2) | No |
| Stranding element | Pairs |
| Screen over stranding element | None |
| Screen over stranding | Foil + braiding |
| Conductor material | Cu, bare |
| AWG-size | 26 |
| Category | 5E |
| NVP value | 77 |

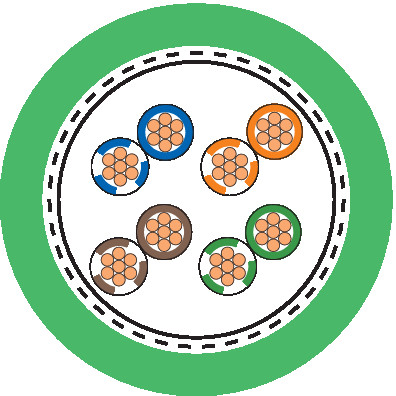

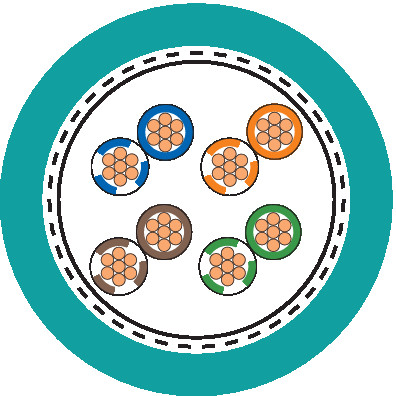

Product images
Datasheet
Here you can download the product's datasheet.
Download datasheetPreise
| Amount | Netto | Brutto |
|---|---|---|
| 100m | 160,46€ | 190,94€ |
| 500m | 762,81€ | 907,75€ |
| 1000m | 1.525,63€ | 1.815,49€ |
Price calculation
Below you can calculate the total price (including copper surcharge) for your desired cable length. Please note, that the copper surcharge will depend on the current stock exchange rate (today: 891,00€/100kg).
For further information regarding the shipment or mass-discounts you can contact us. Please note, that will charge an additional 15,00€ for cutting if you order less than 100 meters or other non-standard sizes.
For orders of less than 150,00€ product value we will charge a fee of 25,00€. Purchase on account - a credit check may be required. All Lapp products will be shipped free of charge within Germany for orders of 350,00€ or more
