HITRONIC® PCF DUPLEX PNB PVC-PVC
Supplier-ID: 28052702
Description
PCF DUPLEX cable for optical signal transmission in industrial applications, PROFINET / Industrial Ethernet, At 100 Mbit/s: max. 100 m length, PROFINET type B: for fixed installation, PROFINET type C: for flexible applications (drag chain), Optical signal transmission up to 500 m, Easy to handle, Suitable for direct connector assembly, No interference by external fields, No grounding problems, Colour-coded, tight buffered PCF single cable with PVC sheath, Aramide fibres as strain relief, Single cable diameter: 2.2 mm, Outer sheath made of PUR or PVC (see article description), Outer sheath colour: green (RAL 6018), 28055702: with c(UL)us certification (OFNG 75°C), Cable version with PVC sheath: for standard applications in industrial environments, Cable version with PUR sheath: for high mechanical or chemical stress in industrial environments, PNB - PROFINET type B, PNC - PROFINET type C, FD - highly flexible (drag chain),
| Specification | Value |
|---|---|
| Flame retardant | In accordance with EN 60332-1-2 |
| Oil resistant (acc. EN 60811-2-1) | Yes |
| Colour outer sheath | Green |
| Material outer sheath | PVC |
| Halogen free (acc. EN 50267-2-2) | No |
| Outer diameter approx. | 7,2 |
| Low smoke (acc. EN 61034-2) | No |
| Armouring | No |
| Circuit integrity | No |
| Longitudinal water blocking | No |
| Radial water blocking | Yes |
| Application | Inside |
| Fibre type | Multi mode 200/300 |
| Strain relief | Yes |
| Resistant to chemicals | No |
| Number of fibres | 2 |
| Type of tube | Tight |
| Number of fibres per tube | 2 |
| Cable metal free | Yes |
| Blow in | No |
| With rodent protection | No |
| Fibre category | OP2 |

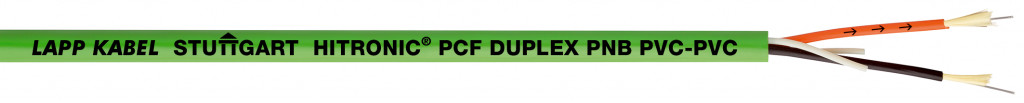

Product images
Datasheet
Here you can download the product's datasheet.
Download datasheetPreise
| Amount | Netto | Brutto |
|---|---|---|
| 100m | 1.010,61€ | 1.202,63€ |
| 500m | 5.053,05€ | 6.013,13€ |
| 1000m | 10.106,10€ | 12.026,26€ |
Price calculation
Below you can calculate the total price (including copper surcharge) for your desired cable length. Please note, that the copper surcharge will depend on the current stock exchange rate (today: 891,00€/100kg).
For further information regarding the shipment or mass-discounts you can contact us. Please note, that will charge an additional 15,00€ for cutting if you order less than 100 meters or other non-standard sizes.
For orders of less than 150,00€ product value we will charge a fee of 25,00€. Purchase on account - a credit check may be required. All Lapp products will be shipped free of charge within Germany for orders of 350,00€ or more
