Letronic e.K. is official distributor of Lapp Cable.
HITRONIC® HVW3000 12x12E 9/125 OS2
Supplier-ID: 26900944
Description

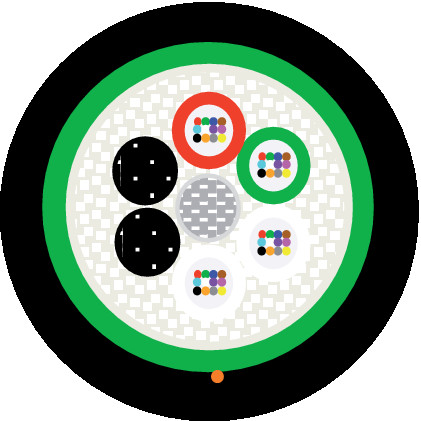

For outdoor use, Area backbone, WAN connections, Industrial environments, Installation type: empty plastic pipes, ducts and trays, Corrugated steel sheath provides excellent protection against high mechanical stress and rodents, Suitable for direct burial, Easy to install due to the compact design, high flexibility, robust sheath and small bending radii, UV-resistant longitudinally and laterally watertight, Up to 12 stranded gel-filled loose tubes, Water-blocking reinforced glass yarn as strain relief, Corrugated steel tape, PE outer sheath, Colour: black (RAL 9005), Stranded loose tubes with up to 144 fibres (12 loose tubes, each with 12 fibres), Colour-coded fibres and loose tubes, Longitudinally watertight, Excellent rodent protection, Robust, halogen-free outer sheath,
| Specification | Value |
|---|---|
| Flame retardant | No |
| Oil resistant (acc. EN 60811-2-1) | No |
| Colour outer sheath | Black |
| Material outer sheath | PE |
| Halogen free (acc. EN 50267-2-2) | Yes |
| Outer diameter approx. | 18,5 |
| Low smoke (acc. EN 61034-2) | No |
| Armouring | Yes |
| Circuit integrity | No |
| Longitudinal water blocking | No |
| Radial water blocking | Yes |
| Application | Outside |
| Fibre type | Single mode |
| Strain relief | Yes |
| Resistant to chemicals | No |
| Number of fibres | 144 |
| Type of tube | Stranded loose tube |
| Number of fibres per tube | 144 |
| Cable metal free | No |
| Blow in | No |
| With rodent protection | Yes |
| Fibre category | OS2 |
