Letronic e.K. is official distributor of Lapp Cable.
HITRONIC® HVN2000 6x12E 9/125 OS2
Supplier-ID: 26601972
Description
For outdoor use, Area backbone, WAN connections, Industrial environments, Installation type: empty plastic pipes, ducts and trays, Suitable for direct burial, Easy to install due to the compact design, high flexibility, robust sheath and small bending radii, UV-resistant longitudinally and laterally watertight, Zero electromagnetic interference as the cable contains no metal, Up to 12 stranded gel-filled loose tubes, Central support made of GRP, Water-blocking reinforced glass yarn as strain relief, PE outer sheath, Colour: black (RAL 9005), Stranded loose tubes with up to 144 fibres (12 loose tubes, each with 12 fibres), Longitudinally watertight, Rodent protection, Robust, halogen-free outer sheath, Colour-coded fibres and loose tubes,
| Specification | Value |
|---|---|
| Flame retardant | No |
| Oil resistant (acc. EN 60811-2-1) | No |
| Colour outer sheath | Black |
| Material outer sheath | PE |
| Halogen free (acc. EN 50267-2-2) | Yes |
| Outer diameter approx. | 10,8 |
| Low smoke (acc. EN 61034-2) | No |
| Armouring | Yes |
| Circuit integrity | No |
| Longitudinal water blocking | Yes |
| Radial water blocking | Yes |
| Application | Outside |
| Fibre type | Single mode |
| Strain relief | Yes |
| Resistant to chemicals | No |
| Number of fibres | 72 |
| Type of tube | Stranded loose tube |
| Number of fibres per tube | 72 |
| Cable metal free | Yes |
| Blow in | Yes |
| With rodent protection | Yes |
| Fibre category | OS2 |

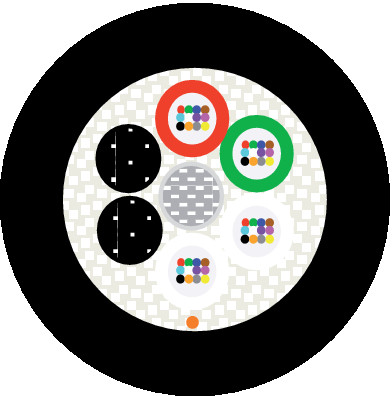

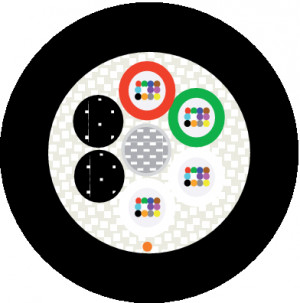

Product images
