HITRONIC® HQA-Plus3200 6x2E 9/125 OS2
Supplier-ID: 26644912
Description

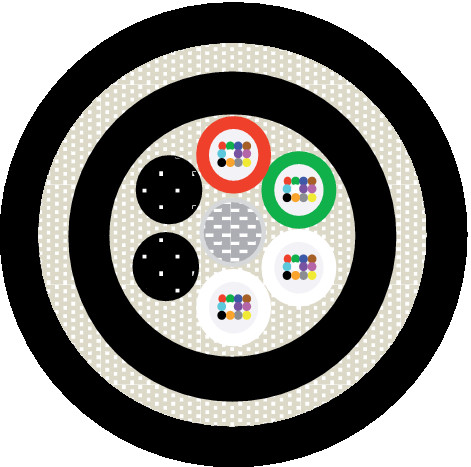

For long span widths, For use in free-hanging, self-supporting solutions, For outdoor use, Laying on masts, Designed to withstand harsh weather conditions, Easy to install due to the compact design, high flexibility, robust sheath and small bending radii, UV-resistant longitudinally and laterally watertight, Zero electromagnetic interference as the cable contains no metal, Up to 8 stranded gel-filled loose tubes, Central support made of GRP, Aramide fibres as strain relief, PE inner and outer sheaths, Colour: black (RAL 9005), Stranded loose tubes with up to 96 fibres, Colour-coded fibres and loose tubes, Longitudinally watertight, Robust, halogen-free outer sheath, Span width up to 250 m,
| Specification | Value |
|---|---|
| Flame retardant | No |
| Oil resistant (acc. EN 60811-2-1) | No |
| Colour outer sheath | Black |
| Material outer sheath | PE |
| Halogen free (acc. EN 50267-2-2) | Yes |
| Outer diameter approx. | 12,8 |
| Low smoke (acc. EN 61034-2) | No |
| Armouring | No |
| Circuit integrity | No |
| Longitudinal water blocking | No |
| Radial water blocking | Yes |
| Application | Outside |
| Fibre type | Single mode |
| Strain relief | Yes |
| Resistant to chemicals | No |
| Number of fibres | 12 |
| Type of tube | Stranded loose tube |
| Number of fibres per tube | 12 |
| Cable metal free | Yes |
| Blow in | No |
| With rodent protection | No |
| Fibre category | OS2 |
Product images
Datasheet
Here you can download the product's datasheet.
Download datasheetPreise
| Amount | Netto | Brutto |
|---|---|---|
| 100m | 362,56€ | 431,44€ |
| 500m | 1.812,78€ | 2.157,21€ |
| 1000m | 3.625,56€ | 4.314,42€ |
Price calculation
Below you can calculate the total price (including copper surcharge) for your desired cable length. Please note, that the copper surcharge will depend on the current stock exchange rate (today: 891,00€/100kg).
For further information regarding the shipment or mass-discounts you can contact us. Please note, that will charge an additional 15,00€ for cutting if you order less than 100 meters or other non-standard sizes.
For orders of less than 150,00€ product value we will charge a fee of 25,00€. Purchase on account - a credit check may be required. All Lapp products will be shipped free of charge within Germany for orders of 350,00€ or more
