Letronic e.K. is official Alpha Wire distributor
To the right you can perform a simple search for a specific Alpha Wire product. Just enter the product number, i.e. "77110", and press "Enter".

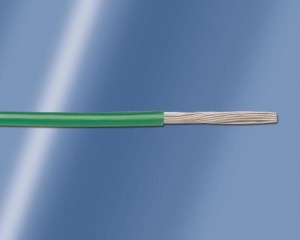

Alpha Wire 6711
| Specification | Value |
|---|---|
| AWG | 26 |
| Colors | Black, Blue, Brown, Dark Blue, Green, Green Yellow, Orange, Red, Slate, Violet, Yellow, White |
| Insulation Diameter | 0.038" / 0.9652 mm |
| Insulation Material | mPPE |
| Insulation Thickness | 0.01" / 0.254 mm |
| Ratings | CSA AWM I A_B, UL AWM 11028, ROHS - RoHS Compliance, REACH Regulation _EC 1907_2006_, UL VW-1, CE - CE Conformance |
| Stranding | 7/34 |
| Temperature | -40°C to +105°C |
| Voltage | 600V |
The offer is valid only for traders / entrepreneurs who have a valid tax number.
For orders below € 100.00, we charge a handling fee of € 25.00.
Payment terms by arrangement. Only our terms and conditions apply.
All deliveries of Alpha Wire products (with a total of 250,00 € an above) are free of charge within Germany.
Datasheet
Here you can download the product's datasheet.
Download datasheetPrices & Ordering
Please refer to the following table for pricing information for different units and/or bundles of this product:
| Units/Bundles | Price |
|---|---|
| 30,5m/100ft | alle Uni Farben = 24,40€ Doppelfarben = 28,10€ |
| 305m/1000ft | alle Uni Farben = 94,50€ Doppelfarben = 118,50€ |
| ab 10 x 305m/1000ft | alle Uni Farben = 81,60€ Doppelfarben = 106,50€ |
| 1525m/5000ft | alle Uni Farben = 607,70€ Doppelfarben = 627,40€ |
| ab 5 x 1525m/5000ft | alle Uni Farben = 588,20€ Doppelfarben = 604,50€ |
| 7620m/25000ft | alle Uni Farben = 2745,20€ Doppelfarben =2788,-€ |
For more details concerning shipping and custom quotes, feel free to contact us.
