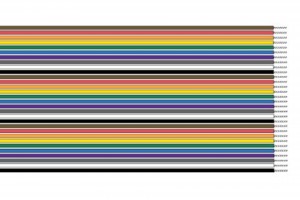

Alpha Wire 3550
| Specification | Value |
|---|---|
| AWG | 26 |
| Colors | Multi-Color |
| Insulation Diameter | 0.39 x 0.039" / 9.906 mm |
| Insulation Material | PVC |
| Insulation Thickness | 0.01" / 0.254 mm |
| Number of Elements | 10 |
| Ratings | MIL-W-16878_1 Type B, UL AWM 2713, UL VW-1 |
| Stranding | 7/34 |
| Temperature | -55°C to +105°C |
| Voltage | 150/600V |
The offer is valid only for traders / entrepreneurs who have a valid tax number.
For orders below € 100.00, we charge a handling fee of € 25.00.
Payment terms by arrangement. Only our terms and conditions apply.
All deliveries of Alpha Wire products (with a total of 250,00 € an above) are free of charge within Germany.
Datasheet
Here you can download the product's datasheet.
Download datasheetPrices & Ordering
Please refer to the following table for pricing information for different units and/or bundles of this product:
| Units/Bundles | Price |
|---|---|
| 30,5m/100ft | 174,90€ |
For more details concerning shipping and custom quotes, feel free to contact us.
