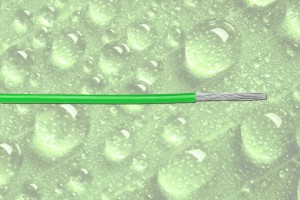

Alpha Wire 6821
| Specification | Value |
|---|---|
| AWG | 26 |
| Colors | Black, Blue, Brown, Green, Green Yellow, Orange, Red, Yellow, White |
| Conductor Diameter | 0.019" / 0.4826 mm |
| Insulation Diameter | 0.035" / 0.889 mm |
| Insulation Material | mPPE |
| Insulation Thickness | 0.008" / 0.2032 mm |
| Ratings | REACH Regulation _EC 1907_2006_, ROHS - RoHS Compliance, CE - CE Conformance, Suitable for ISO 6722 |
| Stranding | 7/34 |
| Temperature | -40°C to +110°C |
| Voltage | 300V |
The offer is valid only for traders / entrepreneurs who have a valid tax number.
For orders below € 100.00, we charge a handling fee of € 25.00.
Payment terms by arrangement. Only our terms and conditions apply.
All deliveries of Alpha Wire products (with a total of 250,00 € an above) are free of charge within Germany.
Datasheet
Here you can download the product's datasheet.
Download datasheetPrices & Ordering
Please refer to the following table for pricing information for different units and/or bundles of this product:
| Units/Bundles | Price |
|---|---|
| 30,5m/100ft | 25,10€ |
| 305m/1000ft | 136,85€ |
| ab 10 x 305m/1000ft | 122,80€ |
For more details concerning shipping and custom quotes, feel free to contact us.
